A grab bar gives you something solid to hold when your footing isn’t certain. Whether you’re planning a bathroom update for yourself or working through options for a parent or spouse, the difference between a bar that helps and one that doesn’t comes down to placement. Put it in the right spot at the right height and it works. A poorly placed grab bar can create a false sense of security without delivering real support.
This guide covers grab bar placement for both walk-in showers and tubs, including ADA height standards, how bar orientation affects function, and what to plan for during a bathroom remodel. If you’d like help figuring out what makes sense for your specific bathroom, Renuity offers free consultations with no obligation to purchase.
Most grab bars are built to support 250 pounds or more. The bar itself rarely fails. What fails is the installation—either the bar was anchored into drywall instead of studs or blocking, or it was placed where it looked right rather than where it would actually be used.
Effective placement comes down to three factors: where you are in the shower or tub when you need support, what movement you’re making at that moment, and how the bar is oriented relative to that movement.
Before getting into specific zones, it helps to understand what each orientation is designed to do.

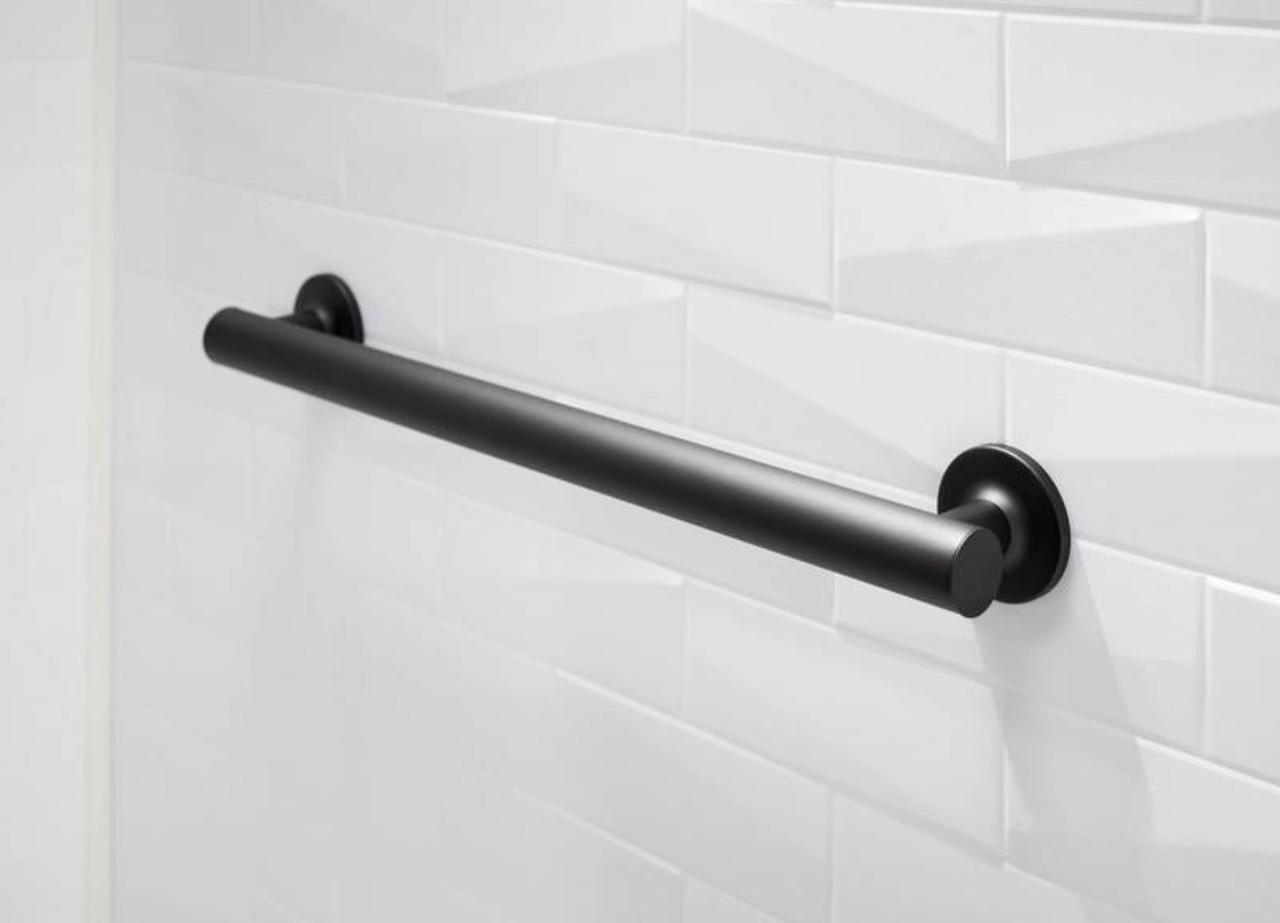

A horizontal bar runs parallel to the floor. It’s best for maintaining balance while you’re already standing or sitting, such as when you’re steadying yourself while washing, or holding position on a shower bench. Horizontal bars don’t give much mechanical advantage for pushing yourself up from a seated position, but they’re effective for stability once you’re upright.
Standard horizontal placement falls between 33 and 36 inches from the floor, which aligns with ADA guidelines and puts the bar at a natural gripping height for most adults.

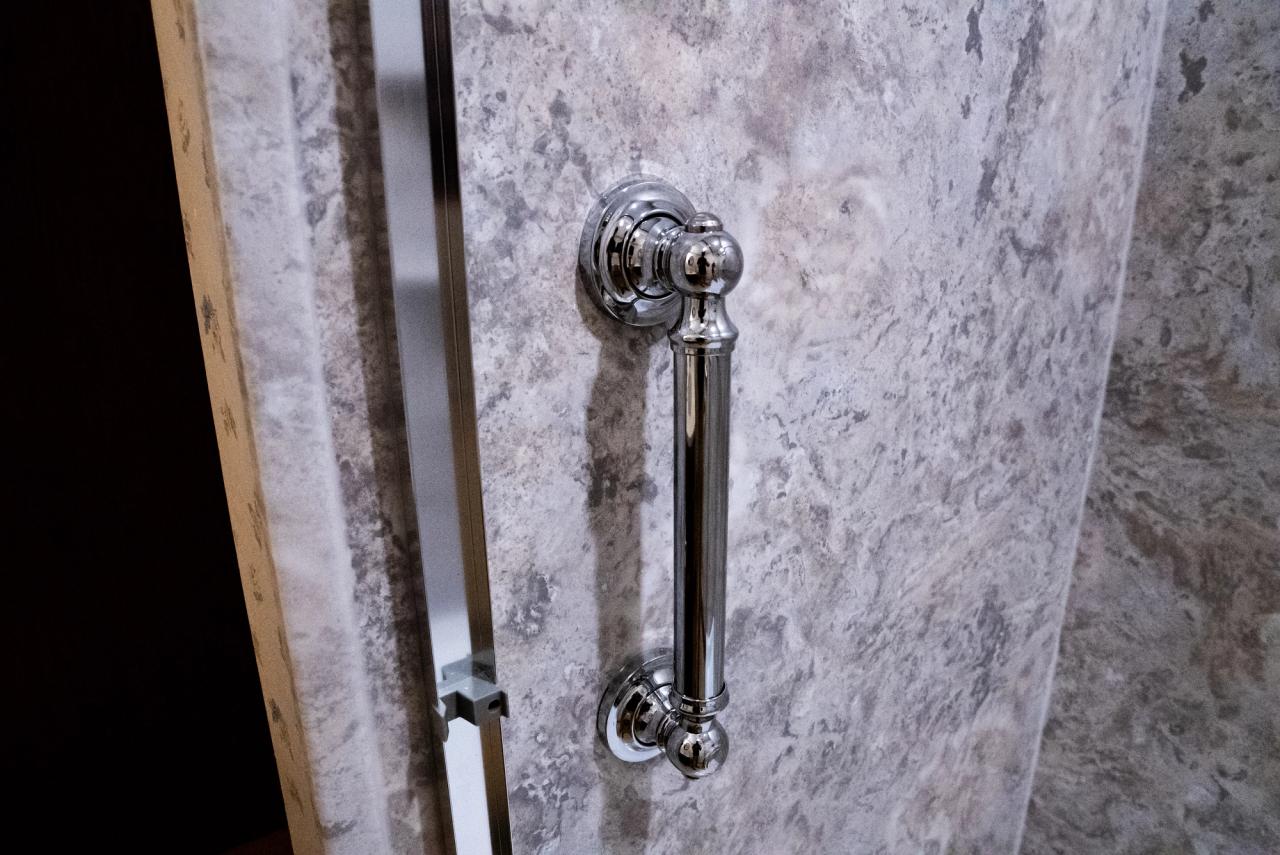

A vertical bar runs straight up and down. It’s most useful at entry and exit points; the places where you’re transitioning from standing outside the shower to stepping in, or lowering yourself toward a seat. The range of grip positions a vertical bar offers lets people of different heights use it naturally without having to reach awkwardly.
Vertical bars are typically placed 16 to 18 inches from the shower or tub entry, positioned so they’re reachable before you step over the threshold.
A diagonal bar is mounted at roughly 45 degrees. It functions as a hybrid—the lower end supports a push-up motion from a seated position, while the upper end offers a handhold while standing. For people who use a shower bench or transfer seat, a diagonal bar near the seating area often replaces the need for both a horizontal and a vertical bar in that zone.
The entry zone is where most falls happen. Stepping over a threshold, crossing a barrier-free floor, or pivoting to close a door all require brief moments of single-leg balance.
Place a vertical bar on the wall nearest the entry, at a height where the top of the bar is reachable at about shoulder level before you step in. For most adults, that puts the top of the bar around 48 inches from the floor. This gives you something to grip while your weight is shifting.
If the shower has a zero-threshold or barrier-free design, the entry grab bar is still worth installing. The absence of a curb removes a trip hazard but doesn’t eliminate the balance challenge of the transition itself.

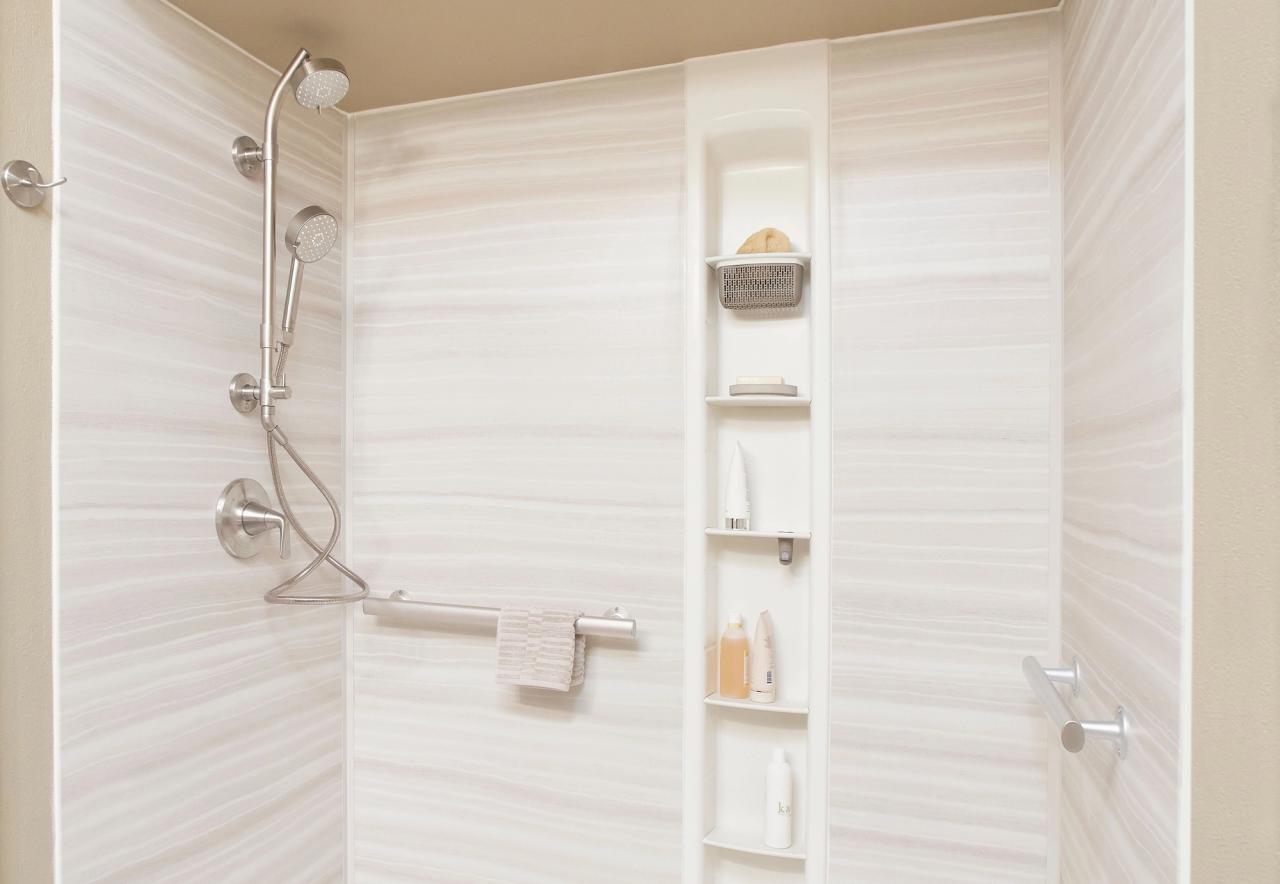

The back wall is where you spend most of your time standing. A horizontal bar centered on the back wall at 33 to 36 inches provides a continuous reference point for balance. In larger showers, a 36-inch bar gives more coverage than an 18-inch bar and is worth the added cost.
For showers designed around walk-in shower dimensions that accommodate a bench or fold-down seat, consider a diagonal bar on the back wall adjacent to the seating area rather than a purely horizontal one.
Side wall bars support the movements you make while turning, reaching for controls, or adjusting the showerhead. A horizontal bar at 33 to 36 inches on the wall with the valve lets you brace while reaching forward without shifting your balance toward a slippery floor.
If the shower has a bench built into a corner, a diagonal or angled bar on the side wall nearest the bench covers both the seated and standing transitions from one placement.
Not every shower needs a bar on the showerhead wall, but in larger enclosures or for people with significant mobility considerations, a horizontal bar here gives a handhold while rinsing. Place it at the same 33 to 36 inch height as the back wall bar.
Walk-in showers are built with accessibility in mind, but the grab bar layout still needs to match how the space is used.
For a walk-in shower with a bench, the most functional configuration is typically: a vertical bar at the entry, a diagonal bar adjacent to the bench for sit-to-stand transitions, and a horizontal bar on the back or side wall for standing stability. That three-bar setup covers the full range of movement without redundancy.
For a walk-in shower without a bench, two bars usually cover the basics: vertical at entry, horizontal on the back wall.
If you’re planning a tub-to-shower conversion, grab bar placement should be part of the initial design conversation, not an afterthought. Retrofitting bars into a finished shower is possible, but planning for blocking in the walls during the remodel gives you more flexibility in placement and a cleaner result.
Tubs present a different set of challenges than showers. Stepping over a high threshold, lowering into a seated position, and pushing back up require more controlled transitions than most shower entries.
A vertical bar mounted on the wall at the faucet end of the tub, positioned so the top is reachable before you lift your leg over the side, is the most important single bar you can add to a tub. Place the top of the bar around 48 inches from the floor, or higher if the primary user is taller.

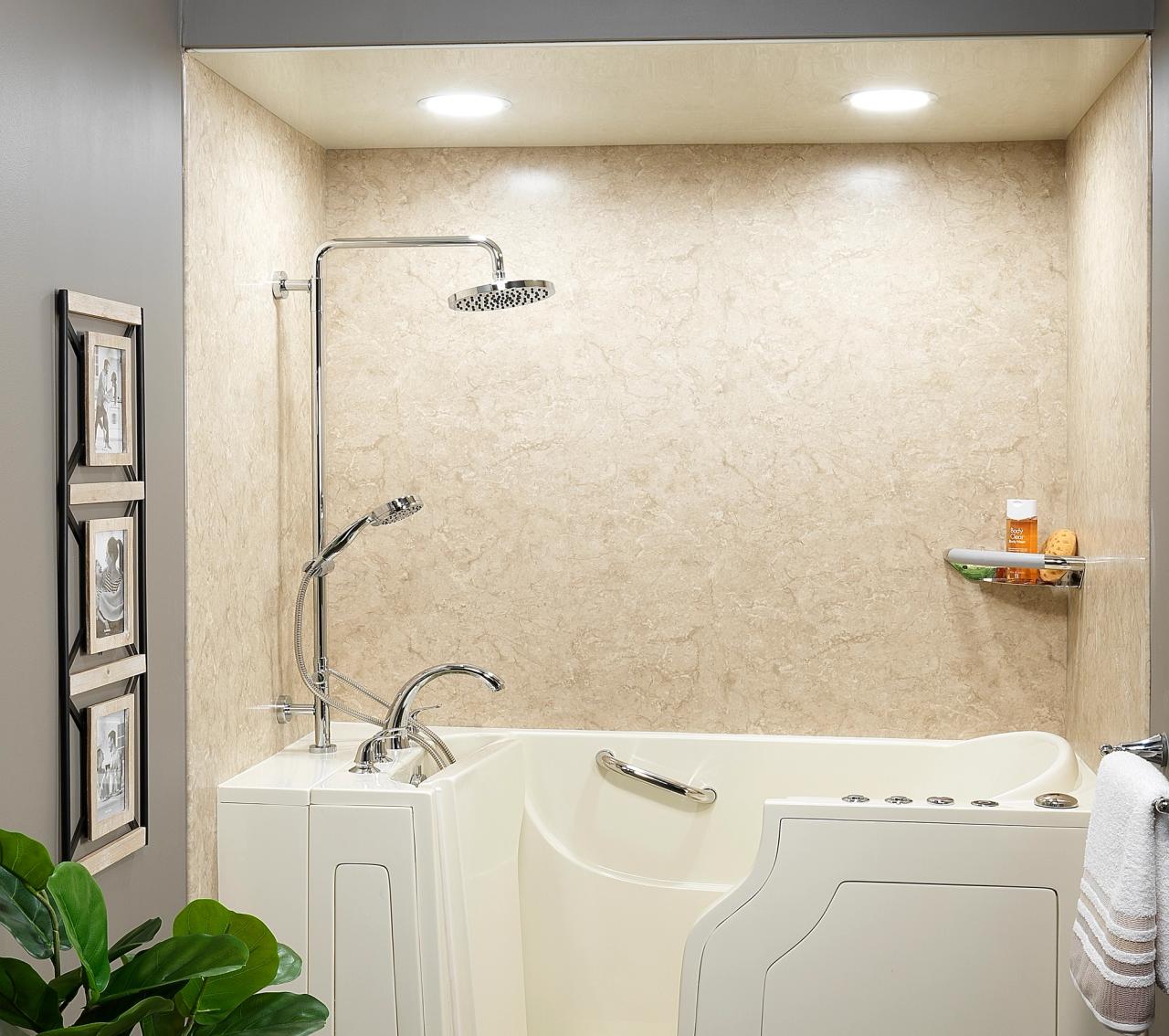

For people who find tub entry and exit difficult regardless of grab bar placement, a walk-in tub eliminates the threshold entirely. It’s worth understanding what that option looks like before committing to a grab bar retrofit on a standard tub, particularly if getting out of the bathtub safely is already a concern.

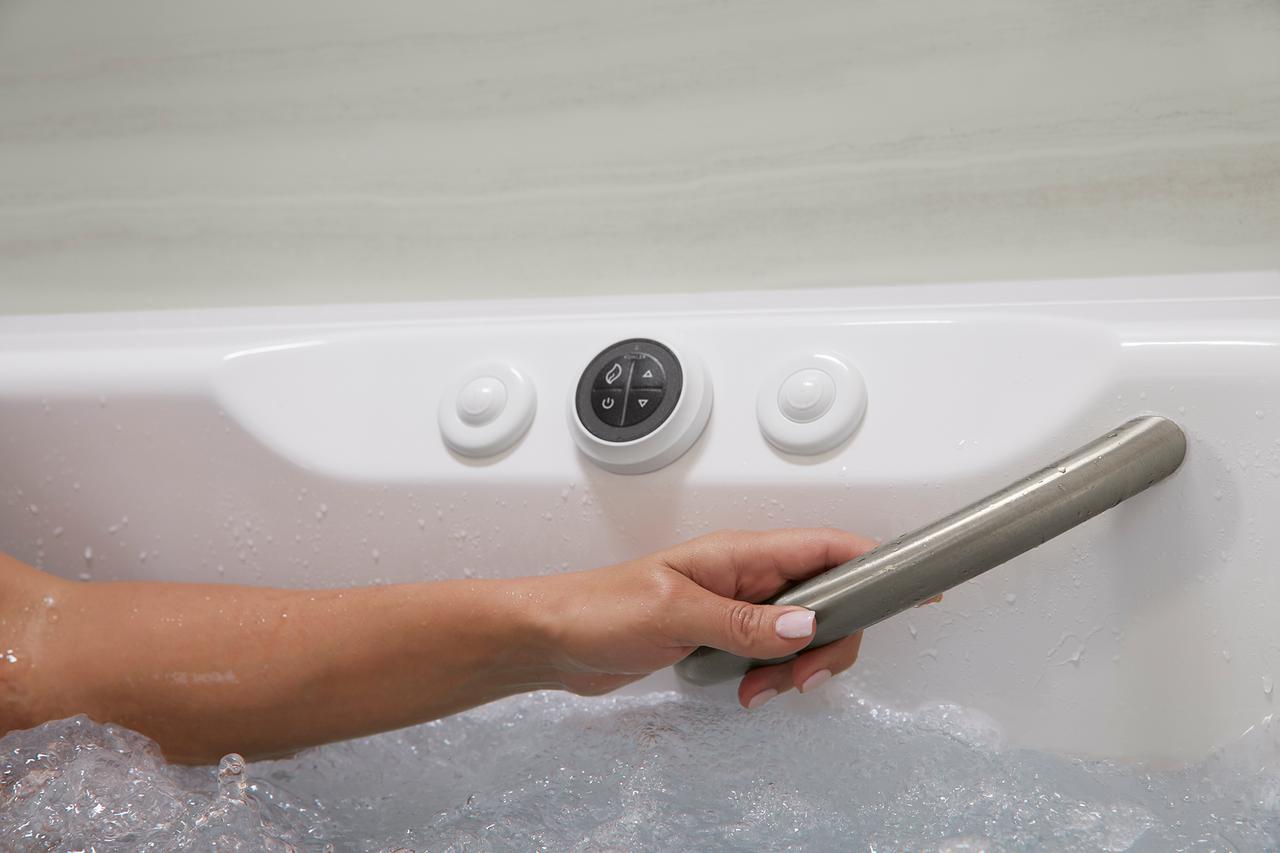

Once seated in the tub, a horizontal bar on the long wall at 33 to 36 inches provides support while bathing. This is the same height standard as shower placement because it puts the bar at a natural gripping height without requiring an awkward reach up or down.
Getting up from a seated position in a tub is physically demanding. A diagonal bar near the faucet end, angled so the lower grip is reachable from a seated position and the upper grip is useful while rising, addresses this movement directly. This is where a single diagonal bar does more work than a horizontal bar alone.
ADA guidelines set horizontal grab bars at 33 to 36 inches from the finished floor. That range accommodates most adults in both standing and seated positions without requiring a reach that compromises balance.
For vertical bars, placement is defined by where the bar sits relative to the entry or transition point rather than a fixed height range. The goal is that the bar is grippable before the weight shift happens, not after.
These numbers are starting points. The right height for a specific person depends on their height, mobility, and how they use the space. A professional installer can assess the actual use case and adjust placement accordingly.

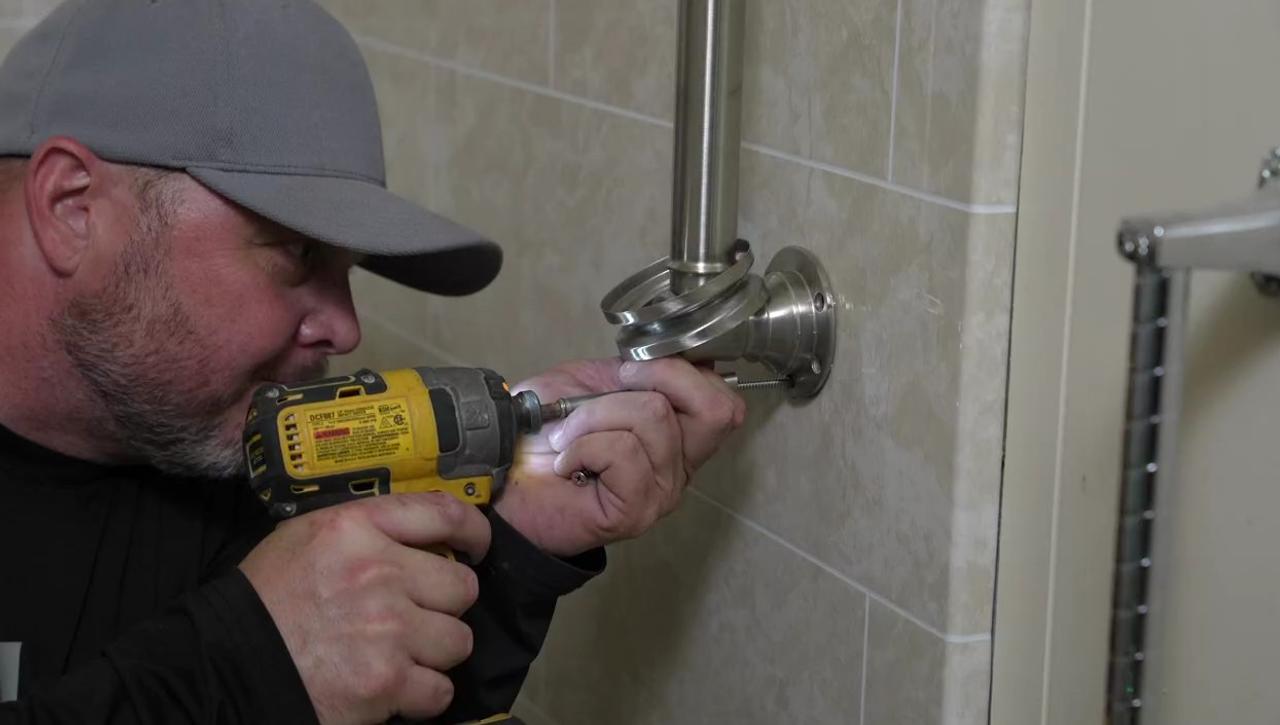

Grab bars work best when they’re planned into a remodel rather than added to a finished bathroom. Bars need to be anchored into studs or blocking installed specifically for this purpose. Studs don’t always fall where the ideal bar location is, and retrofitting blocking after the walls are finished means opening them up.
If you’re considering a bathroom remodel, whether that’s a new walk-in shower, a tub replacement, or a full conversion, it’s worth discussing grab bar placement and wall blocking as part of the scope. The incremental cost during a remodel is low, and the cost of doing it separately after the fact isn’t.
For more on building a bathroom that supports independent living, the handicap bathroom layout guide and ADA-compliant shower overview cover the broader design considerations that grab bar placement fits into.
Renuity works with homeowners across the country on bathroom projects such as walk-in showers, walk-in tubs, and tub conversions. If you’re not sure what your bathroom needs, a free in-home consultation is a good place to start.
