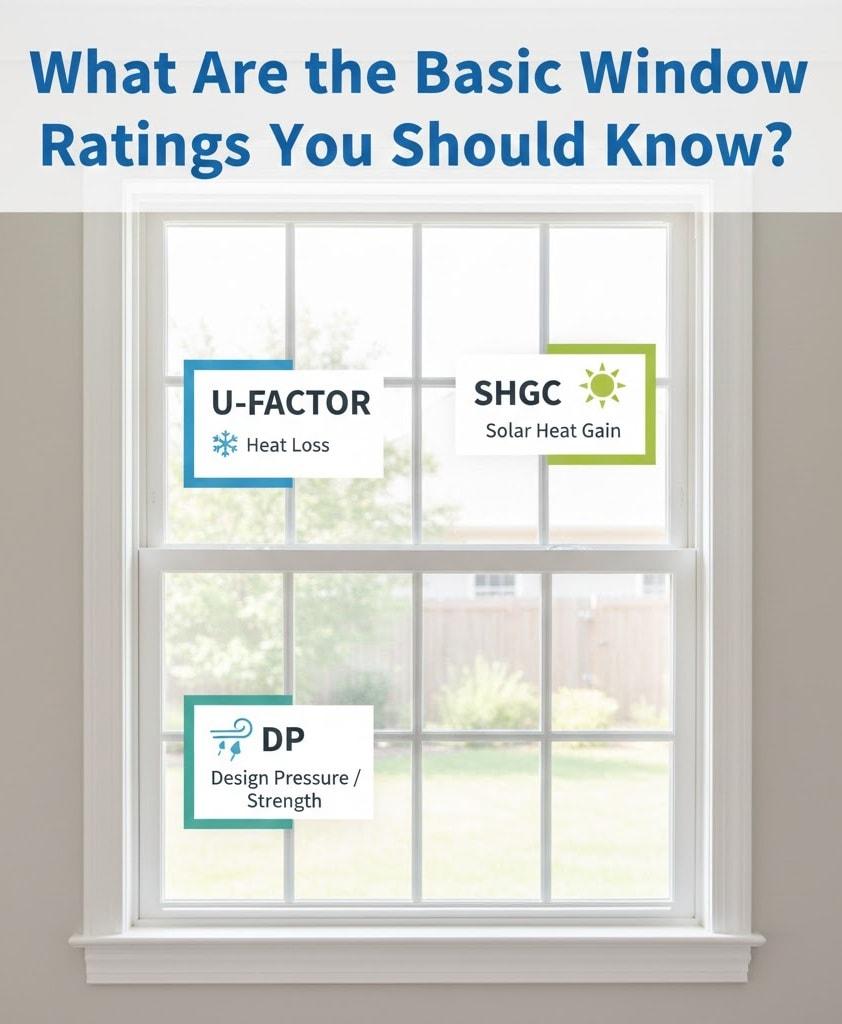

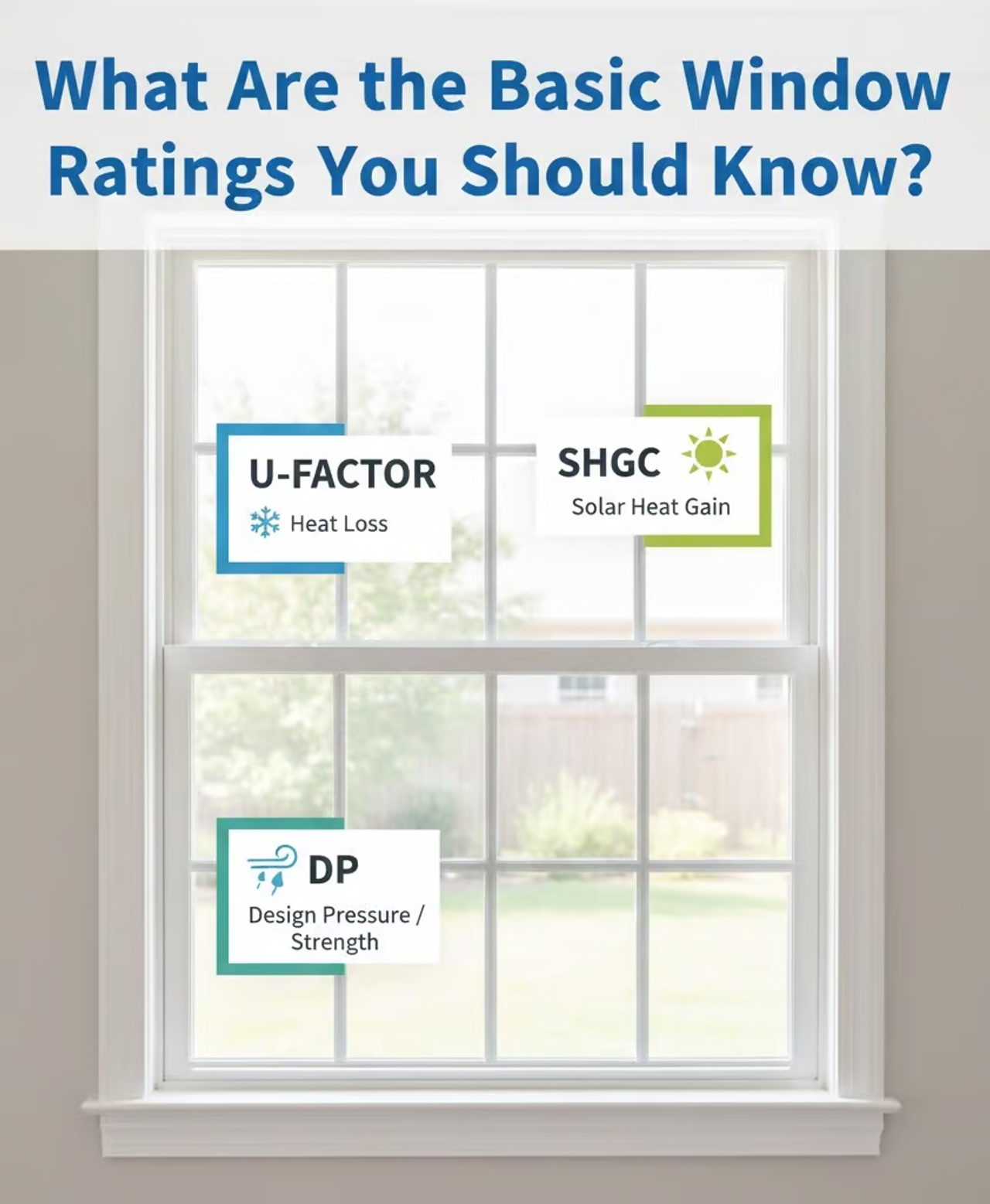

What are the Basic Window Ratings You Should Know?

When you are comparing new windows, the label matters as much as than the frame style or color. Performance ratings tell you how efficiently a window manages heat, light, air movement, and weather stress. Those numbers are important in every climate, from cold northern regions to hot, dry interiors and coastal states with strict storm codes such as Florida.

This overview explains the core ratings, how to read them, and which metrics deserve the most attention for your home.

Who Sets Window Rating Standards?

Several organizations define and verify window performance. Most of the labels you see trace back to the following:

National Fenestration Rating Council (NFRC)

The NFRC provides standardized, independent testing for windows, doors, and skylights. Their label usually lists:

• U-factor
• Solar Heat Gain Coefficient (SHGC)
• Visible Transmittance (VT)
• Air Leakage (AL)
• Sometimes Condensation Resistance (CR)

These metrics exist so you can compare products side by side, including high-performance options such as energy-efficient windows. We’ll define each of these further into this guide.

Lawrence Berkeley National Laboratory (LBNL)

LBNL develops modeling tools and research that underpin many energy standards and rating systems. Their work informs NFRC procedures and federal efficiency programs, but you will not see “LBNL-certified” on a retail label. Instead, they sit behind the scenes, supplying the physics and software that manufacturers and agencies rely on.

ENERGY STAR Certified Windows

ENERGY STAR is a U.S. EPA program that identifies products meeting region-specific efficiency criteria. For windows, that means:

• Manufactured by an ENERGY STAR partner.
• Tested and labeled by the NFRC
• Meeting EPA-defined thresholds for U-factor and SHGC in your climate zone

In hot-summer regions, including much of the South and coastal states like Florida, ENERGY STAR criteria generally favor low SHGC and low U-factor to reduce cooling loads. For a deeper cost lens, you can pair labels guidance on how much you can save with energy-efficient windows.

Core Energy Performance Ratings

These are the numbers most people should learn first. They describe how the window handles heat and light.

U-factor

• What it measures: Rate of non-solar heat transfer through the window.
• Scale: Lower is better for insulation. Typical residential values run roughly 0.25–1.20 Btu/h·ft²·°F.

Lower U-factors help keep interior temperatures steadier in both winter and summer. In cooling-dominated regions, pairing a low U-factor with energy-efficient windows reduces strain on air conditioning.

Solar Heat Gain Coefficient (SHGC)

• What it measures: Fraction of solar radiation admitted through the glass (both directly transmitted and absorbed/re-radiated).
• Scale: 0 to 1. Lower admits less solar heat; higher admits more.

In sunny, hot or mixed climates, a lower SHGC helps cut cooling costs. In colder northern climates with significant winter sun, a moderate SHGC can be beneficial on south-facing elevations.

Visible Transmittance (VT)

• What it measures: Fraction of visible light that passes through the glazing.
• Scale: 0 to 1. Higher means more daylight.

High VT values provide brighter interiors but can coincide with higher SHGC unless the glass uses selective coatings. The goal is a balance between daylight and glare/heat that matches how you use each room.

Air Leakage and Condensation-Related Ratings

These metrics are directly tied to comfort and moisture behavior.

Air Leakage (AL)

• What it measures: How much air passes through the window assembly at a given pressure.
• Scale: Expressed in cubic feet per minute per square foot (cfm/ft²). Lower is tighter.

Industry standards commonly target AL values at or below 0.3 cfm/ft² for residential windows; tighter products can reach around 0.1. Lower AL reduces drafts, uneven room temperatures, and wasted energy. If you suspect current windows are leaky, guidance on how to detect drafty windows pairs logically with comparing AL ratings during replacement.

Condensation Resistance (CR)

• What it measures: Relative resistance to interior condensation formation under standardized conditions.
• Scale: Typically 1 to 100 on NFRC labels. Higher indicates better resistance.

CR becomes more important in humid regions and in homes with higher interior moisture (large households, frequent cooking/showers, limited ventilation). It does not prevent condensation in every scenario but helps compare designs that are more or less prone to moisture on interior surfaces.

Additional Glass-Performance Concepts

Not all of these show directly on every NFRC label, but they influence comfort and durability.

UV Blocking

Many modern coatings block a large share of ultraviolet radiation, reducing fading in flooring, fabrics, and furniture. The label may not show a simple “UV percent,” but manufacturers often publish UV-block performance in technical literature. Impact-rated and laminated systems are discussed in our guide on the noise reduction, UV reduction, and security of impact windows.

Infrared Control (Low-E Coatings)

Low-E (low-emissivity) coatings selectively reflect portions of the infrared spectrum to control radiant heat transfer. In practical terms:

• Hot climates favor coatings that reflect exterior heat while allowing adequate daylight.
• Cold climates favor coatings that reduce interior heat loss in winter.

You see the net effect of these coatings indirectly in the U-factor and SHGC values.

Structural and Impact-Related Ratings

Beyond efficiency and comfort, many windows are rated for structural loads and impact performance. This is relevant everywhere but becomes critical in coastal and high-wind regions.

Design Pressure (DP)

• What it measures: The structural load a window is rated to withstand, expressed in pounds per square foot (psf).
• Interpretation: Higher DP means the unit is tested to handle higher wind loads and pressure differences.

DP does not directly translate to a single universal wind speed because building geometry and exposure conditions matter, but as DP values rise, structural robustness increases. When comparing replacement windows in exposed locations, DP is a useful screening tool.

Performance Grade (PG)

PG incorporates design pressure plus additional performance criteria such as:

• Air infiltration performance
• Water penetration resistance
• Structural load testing

A PG rating equal to or greater than the local code requirement indicates the window has passed all associated tests at that level. For coastal states with stronger codes, this is part of the path toward compliance.

Impact and Hurricane Ratings

In hurricane-prone coastal regions, windows and doors may also carry:

• Impact ratings based on large-missile and small-missile tests
• Approvals for specific High-Velocity Hurricane Zone (HVHZ) jurisdictions
• State- or county-level product approvals (e.g., Florida Product Approval, Miami-Dade NOA)

Impact-rated systems such as impact windows and hurricane windows are designed to stay intact after debris strikes, maintaining the building envelope and reducing the risk of catastrophic internal pressurization.

How to Read a Window Label

Most NFRC labels follow a similar layout, making comparison straightforward:

1. Identify U-factor and SHGC first.
   • Prioritize low U-factor and appropriate SHGC for your climate.
   • In hot-summer and mixed climates, lower SHGC usually helps with cooling costs.
2. Review VT in the context of room use.
   • Higher VT is useful for primary living areas where daylight is a priority.
   • In media rooms or glare-sensitive spaces, a moderate VT might be more practical.
3. Check Air Leakage where available.
   • Favor lower AL, especially in windy locations or for rooms sensitive to drafts.
4. Consider CR and impact/DP/PG where relevant.
   • In humid or coastal climates (Florida, Gulf Coast, Atlantic seaboard), focus more on condensation resistance and structural/impact ratings than in milder inland regions.

Pairing label interpretation with background research (such as our guide to window styles, Windows 101, or our post comparing vinyl vs. PVC windows) helps tie performance numbers to frame and glass choices.

Which Ratings Matter Most for Your Situation?

The short answer: it depends on your climate and priorities, but broadly:

• Cold or mixed climates:
  • Low U-factor
  • Moderate SHGC on sun-exposed elevations
  • Good AL and CR scores
• Hot, sunny inland climates:
  • Low U-factor
  • Low SHGC
  • Low AL to reduce warm-air infiltration
• Coastal and hurricane-prone areas (e.g., Florida, Gulf Coast, Outer Banks):
  • All of the above, plus:
    • Appropriate DP/PG for local wind design requirements
    • Verified impact or hurricane ratings where codes require them
    • Strong air and water performance for wind-driven rain

If you are planning a full project rather than a single repair, browsing energy-efficient options and impact-rated systems gives a practical context for applying these ratings to actual product choices.

Putting Window Ratings to Work

Window labels are not marketing copy; they are standardized technical summaries. Once you understand the core terms:

• U-factor and SHGC tell you how the window handles heat.
• VT, AL, and CR describe how it manages light, drafts, and moisture.
• DP, PG, and impact ratings indicate structural and storm performance.

Using those numbers as a filter simplifies the process of choosing replacement windows that fit both your climate and your comfort expectations, rather than relying on vague claims about efficiency or strength.
